 ※ Now : Products center >> >> Super ultrapure water system

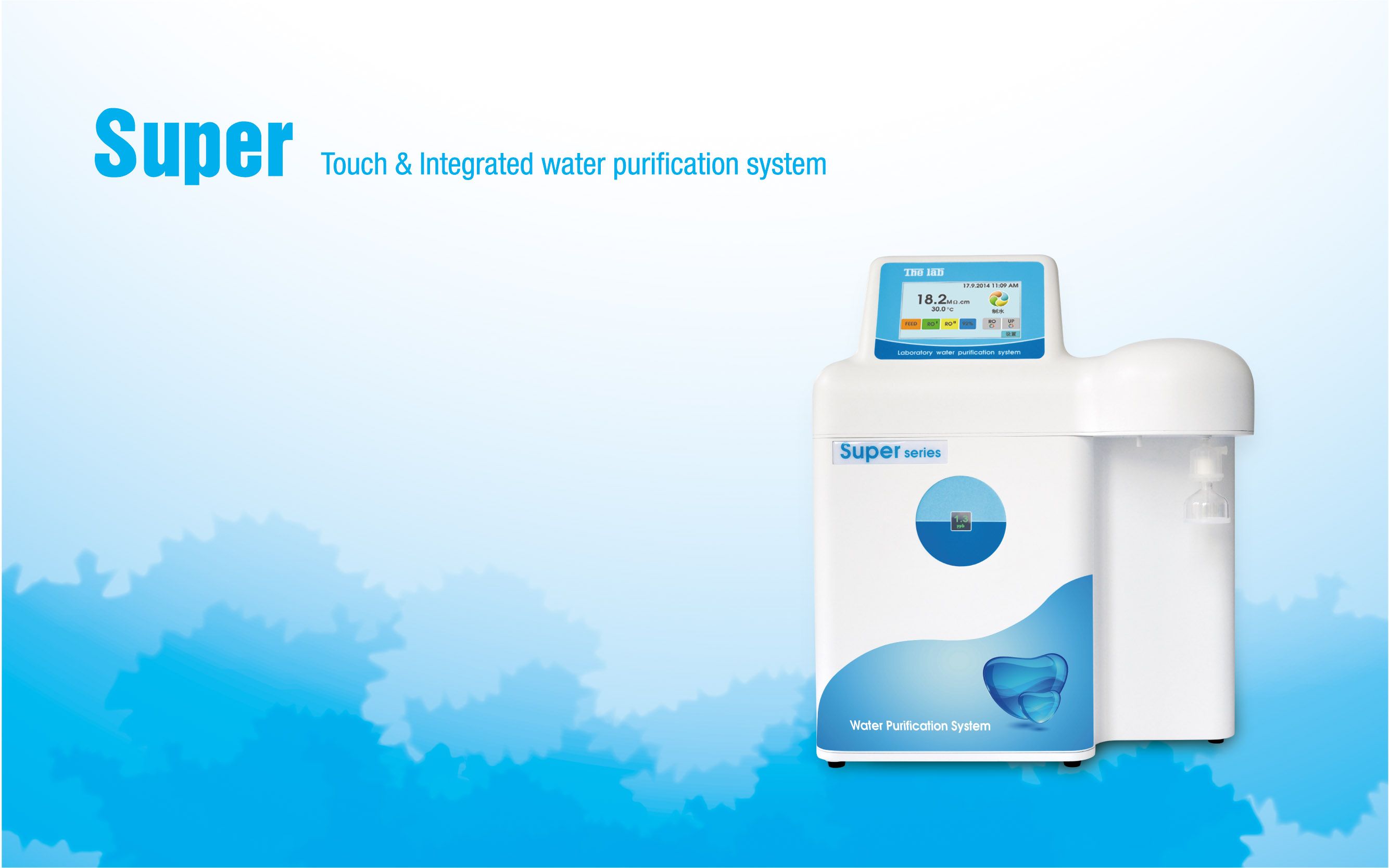

Super series, integrating 7.0 inch touch screen system, 4 way water quality sensor, 3 way flow sensor for quantified dispensing, Ionpure EDI module, 2 stage RO and 3 pump system, built-in TOC module, and with tap water inlet, its output is 10 liters/hour.

It can produce Edi water and ultrapure water. The Edi water′s resistivity is above 5MΩ.cm, and TOC is lower than 30ppb. The ultrapure water′s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.
Features and Advantages

Colorful touch screen

7.0 inch colorful high-resolution touch screen (16:9) controlling system, achieve finger-touch new experience.

Comprehensive monitoring system

4 way online water quality sensor, detect the quality of feed water, 2nd stage RO water, Edi water and ultrapure water respectively. And warn once water quality′s standard exceeding.

3 way flow sensor, count source water consumption and achieve quantified dispensing of Edi and ultrapure water.

Integrate with Ionpure EDI module

Without softener, chemical regeneration and replacing any DI cartridge, its pure water′s resistivity will be above 5MΩ.cm(25°C), and TOC is lower than 30ppb. It will reduce the running cost and emissions of waste water. The maximum output is 240 liters per day.

Double stage reverse osmosis technology

With 2 pumps, 2 RO membranes and buffer tank, system assures 2nd stage RO water quality′s stability from different source water, and achieves little drain and low running cost.

Built-in 3 pump system

1st stage RO pump, 2nd stage RO pump and circulating sanitizing pump

Built-in online TOC monitor module (TOC model)

Independent TOC monitor module

It can be taken out to monitor any other ultrapure water

All Cartridges replacing alarm function, based on time, flux and water quality, show cartridges′ used and residual life.

Multiple alarm function: no feed water, full water, water quality′s standard exceeding, cartridge life ending and leakage.

Auto self-flushing of RO membrane function (interval and continuous time setting), extend RO membrane′s life.

Auto running data storing function with built-in SD card, and data can be exported through the USB interface.

System continuous upgrading function through USB interface, and WIFI module is optional.

Built-in perpetual calendar clock for cartridges and service setting.

System sanitizing procedure, achieve the disinfection of ultrapure water′s tube and valve.

System circulation function, achieve ultrapure water′s circulation to keep top quality of ultrapure water.

Level II password, protect all the parameters setting, and prohibit any unauthorized setting change.

Attached 50 liters water tank with conical bottom, including air filter, to prevent co2 and bacteria. Also external tanks is optional.

Whole plastic shell with high-strength, avoid rusting and keep clean, to meet GLP standard.

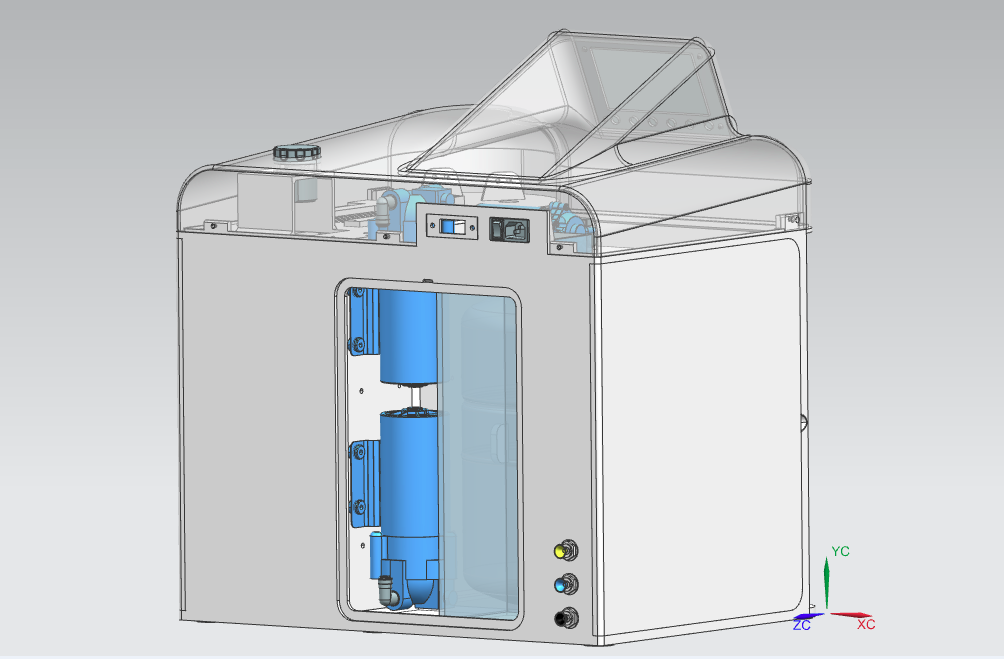

4 door and easy-to-replacing cartridge design, convenient to maintain system and replace cartridges.

Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water′s quality.

Optimized pretreatment (including PP fiber, KDF and active carbon cartridge), effectively protect RO membrane.

RO module with DOW′s membrane, ensure long life, stable operation and high desalinization rate.

Ultrapure cartridge with DOW′s top polishing resin, ensure ultrapure water′s quality up to 18.2 MΩ.cm, with the lowest TOC level.

Double wavelength (185&254nm) ultraviolet lamp module, restrain bacteria′s increase and reduce TOC.

MWCO 5000D ultrafiltration module, effectively eliminate endotoxin, and suitable for precise cell cultivating and IVF.

(0.45+0.1)μm double layer PES terminal disinfection filter, assure that terminal pure water is absolutely axenic.

Flow Schematic
Specifications
Model Standard Eliminating endotoxin Low TOC Synthesizing Built-in TOC module
Super 10 Super 10F Super 10V Super 10FV Super-TOC10V Super-TOC 10FV
Output-EDI water* 10 liters/hour
Output-ultrapure water Up to 2 liters/minute (when tank is full)
Ultrapure water quality ?
Resistivity(25°C) 18.2MΩ.cm
TOC* <10ppb <10ppb <3ppb <3ppb <3ppb <3ppb
Bacteria <0.01cfu/ml
Particle(>0.1μm) <1/ml
Endotoxin N/A <0.001Eu/ml N/A <0.001Eu/ml N/A <0.001Eu/ml
RNases N/A <1pg/ml N/A <1pg/ml N/A <1pg/ml
DNases N/A <5pg/ml N/A <5pg/ml N/A <5pg/ml
EDI water quality ?
Resistivity(25°C) >5MΩ.cm
TOC* <30ppb
Silicon rejection rate >99.9%
Feed water requirements Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm2
Dimension and weight Length×Width×Height:545×470×639mm, 28Kg
Electrical requirements AC200-240V, 50/60Hz
Power 240W
Standard configuration Main body (Including 1 set of cartridge)+50 liters PE tank (TOC model:+ built-in TOC module)
Remarks:
*The value will be influenced by temperature and feed water′s quality.

Cartridges

Item no. Commodity Approximate replacement term /set
D-PP1 Pretreatment cartridge 2-6 months
D-AK KDF+ granular active carbon mixed cartridge 12 months
D-AC2 Active carbon block cartridge 6 months
D-RO-100 100 GPD reverse osmosis membrane 12-24 months
D-RO-200 200 GPD reverse osmosis membrane 12-24 months
D-SF Water softener cartridge 6 months
D-EDI10-IP EDI module 36 months
D-Uvlamp-14W (254&185) nm wavelength uv lamp 9000 hours
D-Pocart4 Ultrapure polishing resin cartridge 5000 liters pure water
D-Ufcart Eliminating endotoxin uf cartridge -
D-Tefit (0.45+0.1µm) terminal filter -
